Frame Structure Large Rubber Gasket Plate Vulcanizing Press for Tire Retread

Product Categories
Qingdao Honghesheng Industry Co., Ltd.
Contact Now

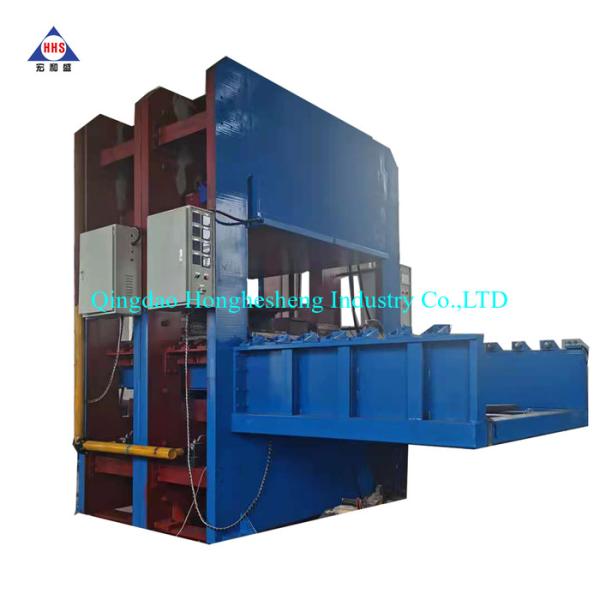

Frame Structure Large Rubber Gasket Plate Vulcanizing Press for Tire Retread

Brand Name : HHS

Model Number : XLB800-2200

Certification : CE

Place of Origin : Qingdao Shangdong

MOQ : 1 set

Price : USD 50000

Payment Terms : L/C, D/A, D/P, T/T, Western Union,

Supply Ability : 60 sets/Year

Delivery Time : 15-30 work days

Packaging Details : Wooden cases / Containers, etc

Type : Vulcanizer

Colour : all colour

Voltage : customized

Power(W) : 11KW*2

Temperature : max 300 degree

Working Layers : 1-4layers

Plates : 300-2100mm

Hot Plates Material : Q-235 material.

Heating : electricity , steam heating , conduction oil heating .

Weight : 30000 kg

Contact Now

Frame Structure Large Rubber Gasket Plate Vulcanizing Press/Tire Retread Vulcanizing Press

Frame Structure Rubber Vulcanizing Press with Hydraulic Cylinders

1. Product Application

Our automatic rubber vulcanizing press machine mainly consists of main machine,electrical control cabinet,hydraulic station,automatic adjustable rail device,automatic ejector device,etc..It can be used to make various kinds of rubber molded products. It's not only used for vulcanizing various kinds of rubber and plastic mould products, but also non-mould products. It also can make tyre, O-rings, rubber floor tiles, slippers and other rubber products.

2. Product Paramenters

Model
Total Pressure (MN)
Daylight
(MM)
Working layer
Piston Stroke
(MM)
Motor Power
(MM)
Overall Diameter
XLB-350*350*2
0.25
125
2
250
2.2
1200*580*1200
XLB-400*400*2
0.50
125
2
250
2.2
1400*500*1400
XLB-600*600*2
1.00
125
2
250
2.2
1880*820*1680
XLB-750*850*4
1.60
125
4
500
3
1730*930*2460
XLB-900*900*2
2.5
200
2
400
4
2345*960*1385
XLB-1200*1200*1
3.15
300
1
300
4
2800*1300*2300
XLB-1300*2000*1
5.60
400
1
400
8
2000*1860*2500
XLB-1500*1500*1
8.00
800
1
800
16.5
2200**2200*4300
XLB-1500*2500*1
15.00
400
1
400
11
3000*2500*3300
XLB-2000*2000*1
20.00
400
1
400
11
3600*3000*3300

Frame Structure Large Rubber Gasket Plate Vulcanizing Press for Tire RetreadFrame Structure Large Rubber Gasket Plate Vulcanizing Press for Tire Retread

Frame Structure Large Rubber Gasket Plate Vulcanizing Press for Tire RetreadFrame Structure Large Rubber Gasket Plate Vulcanizing Press for Tire Retread

Frame Structure Large Rubber Gasket Plate Vulcanizing Press for Tire RetreadFrame Structure Large Rubber Gasket Plate Vulcanizing Press for Tire RetreadFrame Structure Large Rubber Gasket Plate Vulcanizing Press for Tire RetreadFrame Structure Large Rubber Gasket Plate Vulcanizing Press for Tire Retread
